MNFF0H

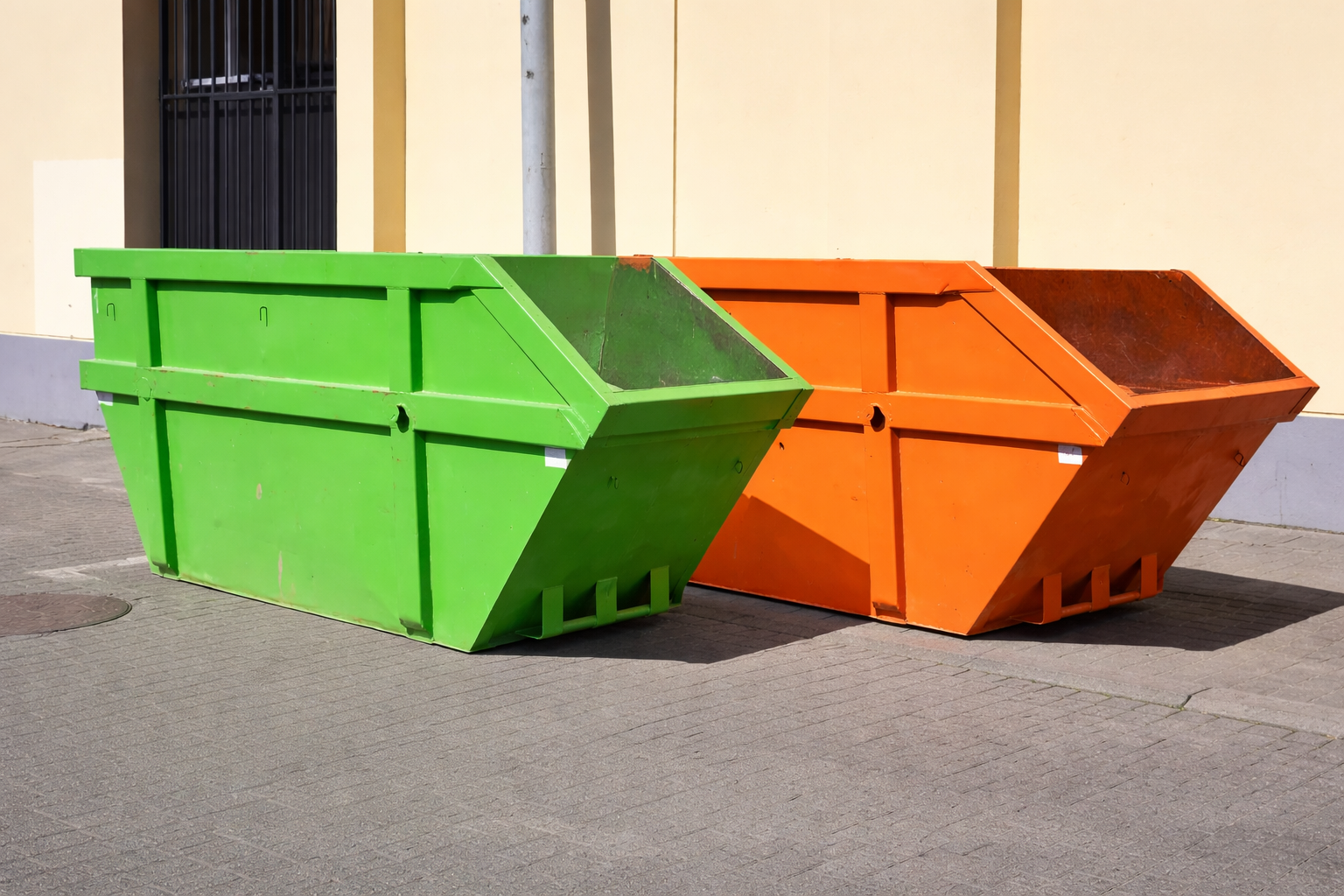

Municipal Skip Bin
Description
Heavy-duty municipal skip bins engineered for reliable waste collection in construction sites, municipalities, factories, and commercial facilities. Available in 5.5 CBM to 10 CBM capacities, these skip bins are fabricated from thick mild steel plates, reinforced structural sections, and finished in high-quality industrial paint or powder coating for long-term durability, corrosion resistance, and safe handling.
Technical Specifications
Capacity Range: 5.5 CBM, 7 CBM, 9 CBM, up to 10 CBM
Material: Mild steel plate construction
Side & Floor Thickness: 4 mm mild steel plate
Extensions (9–10 CBM): 3 mm mild steel plate
Floor: Corrugated 4 mm reinforced steel
Tip Bar: 40 mm diameter mild steel round
Hinge Bar: 50 mm diameter steel round
Rear Hook Bar: 25 mm diameter steel round (90 mm inner radius)
Tip Bar Lugs: 10 mm mild steel
Lifting Pins: 65 mm diameter forged steel
Lifting Lugs: Forged and welded to side plates and reinforcement channel
Bin Structure: Folded edges, reinforced top sill with pressed channel
Corner Reinforcement: Gusset-reinforced upper inner corners
Base Weight (5.5 CBM): Approx. 780 kg
Finish: Industrial paint or powder coated (green, orange, or custom colors)
Manufacturing Standard: As per tender and approved engineering drawings
