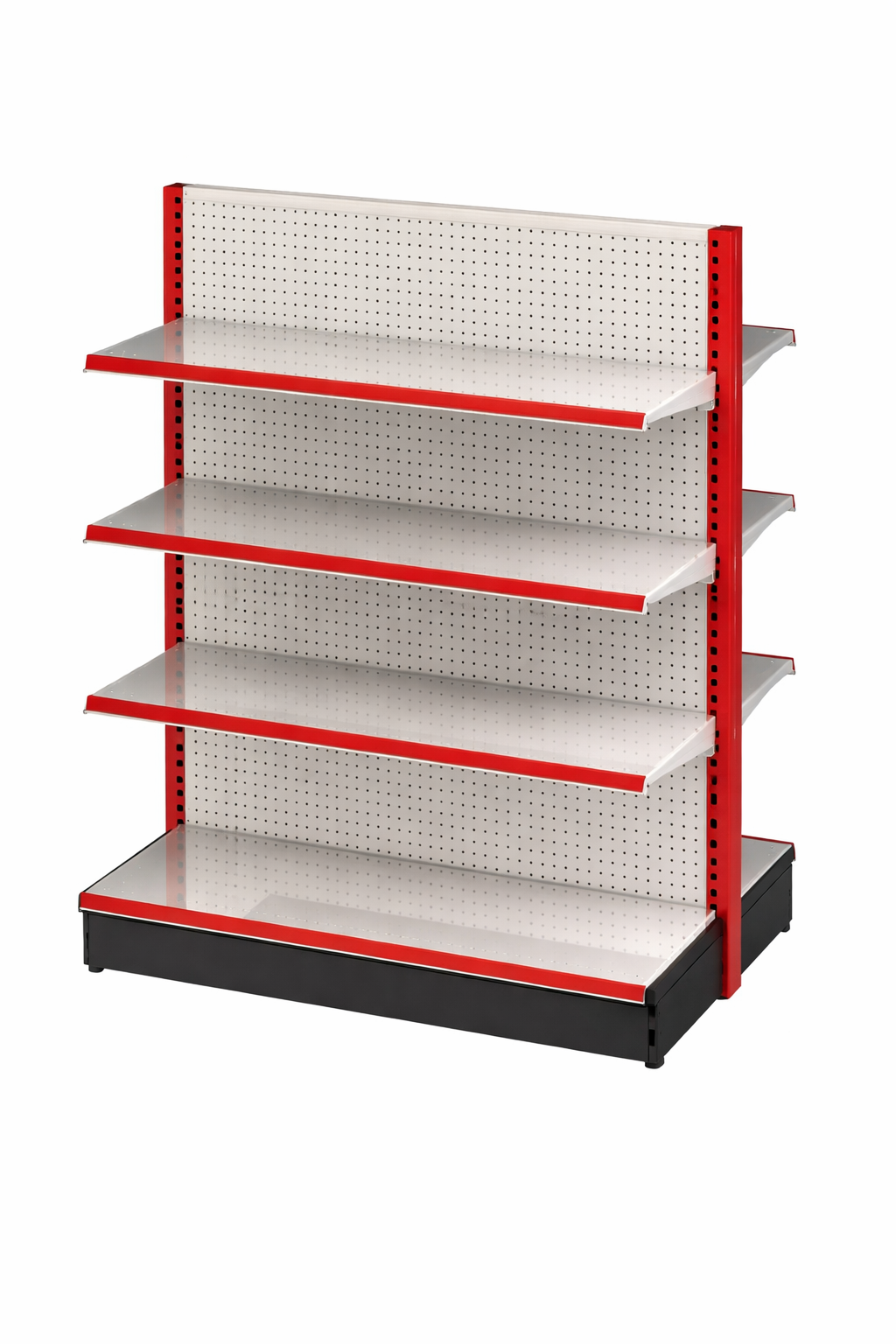

American Style Gondola Shelving grocery store shelf
Description
This American-style supermarket shelving system is a classic, heavy-duty retail fixture designed for strength, durability, and high product visibility. Featuring a double-sided pegboard back panel, it allows flexible merchandising using shelves, hooks, or accessories. Manufactured from high-quality cold-rolled steel, this shelving unit is ideal for supermarkets, convenience stores, hardware shops, and general retail outlets requiring reliable load capacity and long service life.
Its reinforced posts and thick shelf construction make it suitable for heavy goods while maintaining a clean, professional store layout.
Technical Specifications
Product Type: Supermarket Shelf
Configuration: Double-sided with pegboard back panel
Dimensions & Configuration
Upright Height Options: 54" / 60" / 72" / 84" / 96"
Shelf Length Options: 36" / 42" / 48" / 54"
Base Shelf Depth Options: 12" / 14" / 16" / 18" / 20" / 22" / 24"
Upper Shelf Depth Options: 12" / 14" / 16" / 18" / 20" / 22" / 24"
Standard Size: 48" × 20" + 18" × 3 × 72"
Shelf Layers: 1 + 3
Structural Specifications
Post Specification: 50 × 65 × 1.2 / 3.5mm
Shelf Thickness: 0.7mm
Back Panel Thickness: 0.8mm
Load Capacity
Standard Load: 100kg per shelf
Maximum Load: Up to 150kg per shelf
Material & Finish
Material: Q195 / SPCC Cold-Rolled Steel
Standard Color: Cream (EPYW1X2129)
Commercial Terms
MOQ: 50 Units
Quality Assurance:
